Proxxon TB50 Table Belt Sander 230v (27030)

** New For 2023  - Now Available **

Proxxon TB50 Table Belt Sander 230v

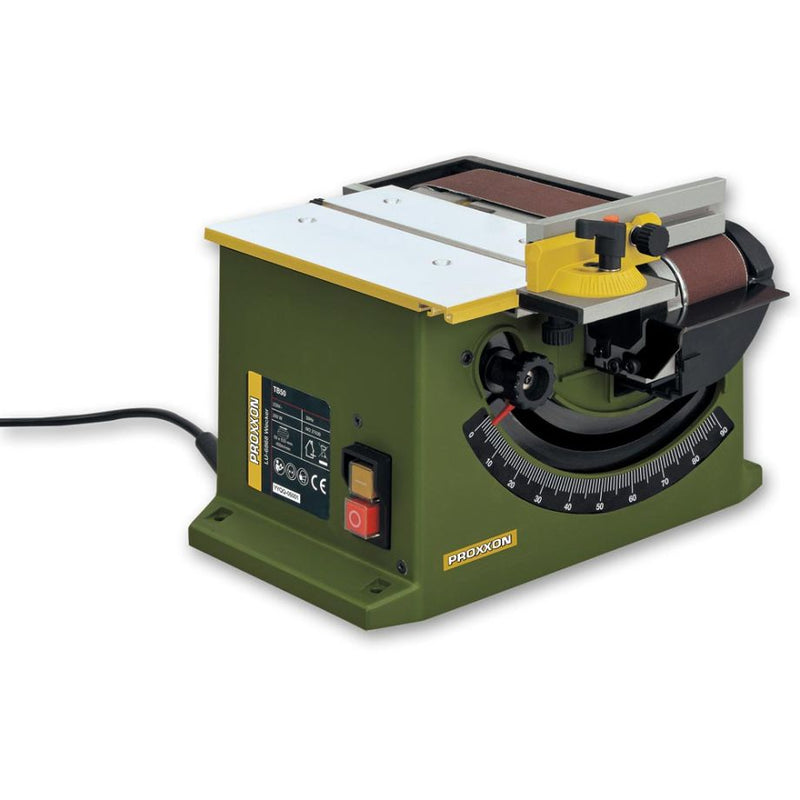

Everything you want from a stationary belt sander in a small precise form with extra versatility. The plane-milled die-cast aluminium table is 210 x 145mm offering plenty of support for small work pieces. The table has a mitre slot for the mitre fence allowing you to sand at exact angles. A scale with and a locking knob enable you to angle the belt from 0° to 90°, allowing you to use the belt vertically or flat and anywhere in between. When used flat the mitre fence becomes a stop.

The TB50 is powered by a balanced DC-motor with a no-volt release switch. The belts are 50 x 533mm and run at 400m/min for fast and highly effective sanding. Belt changes are easy thanks to the spring loaded rollers, which also feature fine adjustment for belt tracking. The well designed dust hood is highly effective when connected to a suitable vacuum for extraction.

The compact design means you can stow the TB50 easily after its work is done.

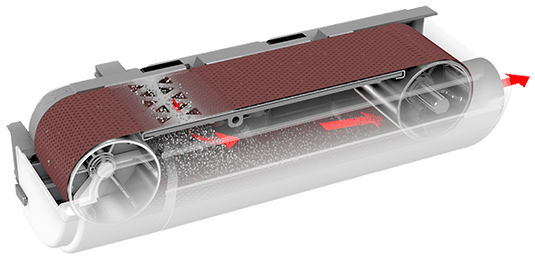

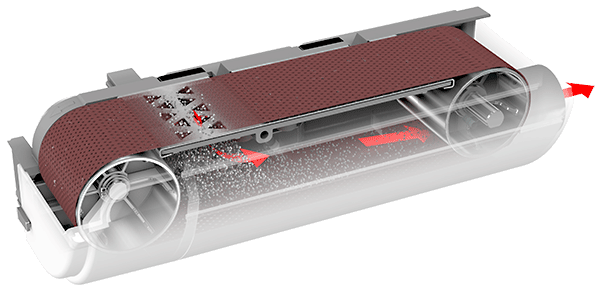

Highly effective dust extraction: Thanks to the net sanding belt and the perforated sanding support dust is already extracted where it is produced.


Key Features:

Benchtop belt sander for modelling and fine craftwork

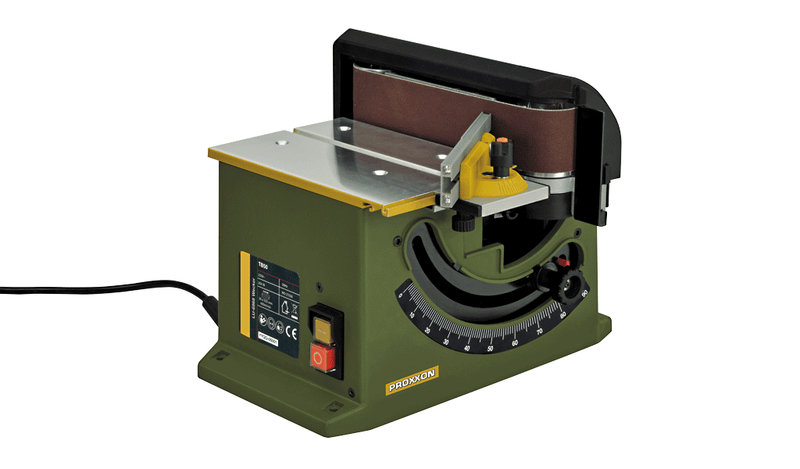

Belt tilts from 0° to 90°; vertical through to horizontal

Mitre fence included for accurate angle sanding

Strong die-cast aluminium table (210mm x 145mm)

Belt Speed 400m/minute

Abrasive Belt size 50 x 533mm

Overall size 250 x 200 x 250mm

Table Size 210 x 145mm

Fitted with UK 3-pin plug

Weight 5kg

SKU: 27 030

Spare mesh belts are available in packs of 3 in 100, 180 & 240 Grit grades, SKUs 27 032, 27 033 & 27 034)
