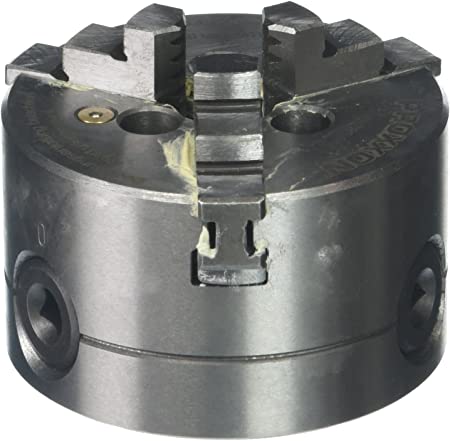

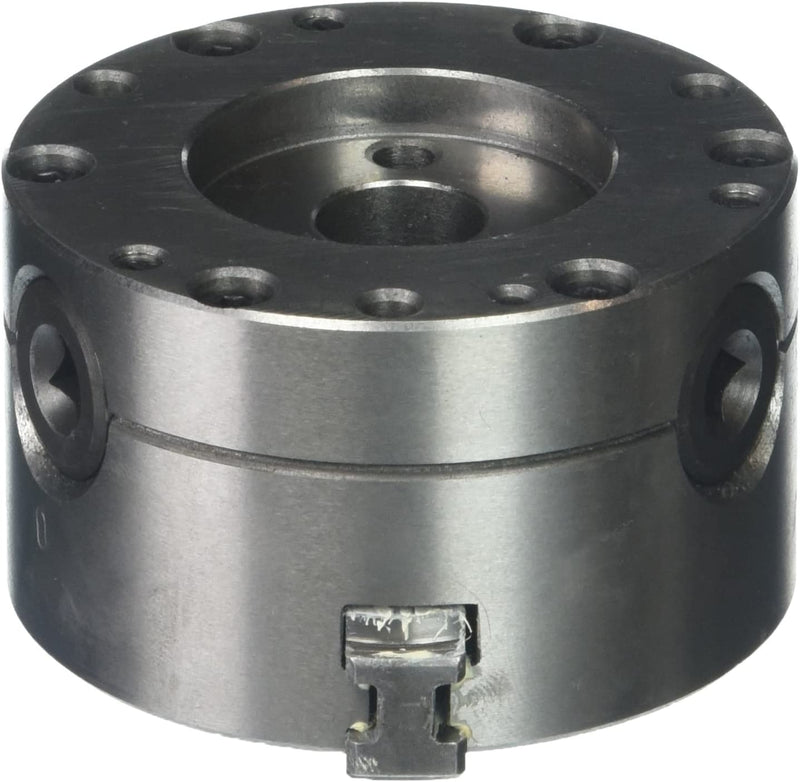

Proxxon Self-Centering 3-Jaw Chuck for PD250/E (24034)

Identical to the standard equipment chuck of the PD 250/E, meeting DIN 8386 Class 1 with concentricity better than 0.04mm.

Reversible jaws permit clamping in the range 2mm to 90mm diameter.

Supplied with spring-loaded square key and set of fixing screws.

Suits PD 250/E # 24002 and TA 250 # 24044.

Fitted with a ball-sealed greasing point.

Individually laser serialised.

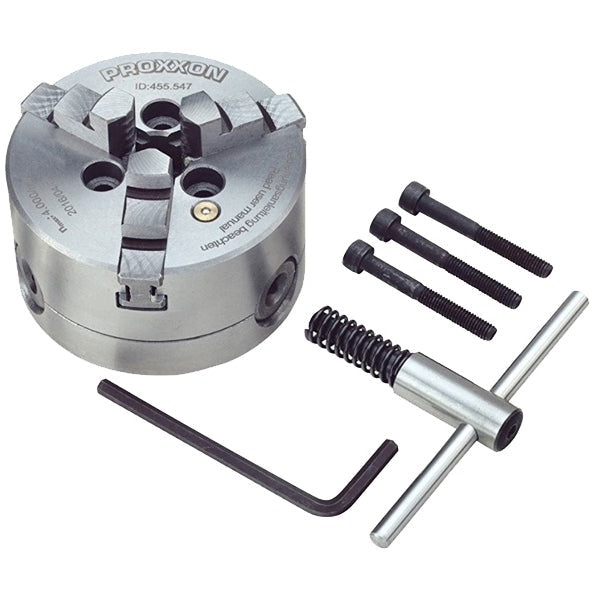

Included components:

Chuck with 3 reversible jaws
Spring loaded square key
Mounting screws

Technical specifications:

Maximum rotational speed 4000/min
Meeting DIN 8386 Class 1 with concentricity better than 0.04mm.
Clamping range2mm to 90mm diameter

SKU: 24 034
