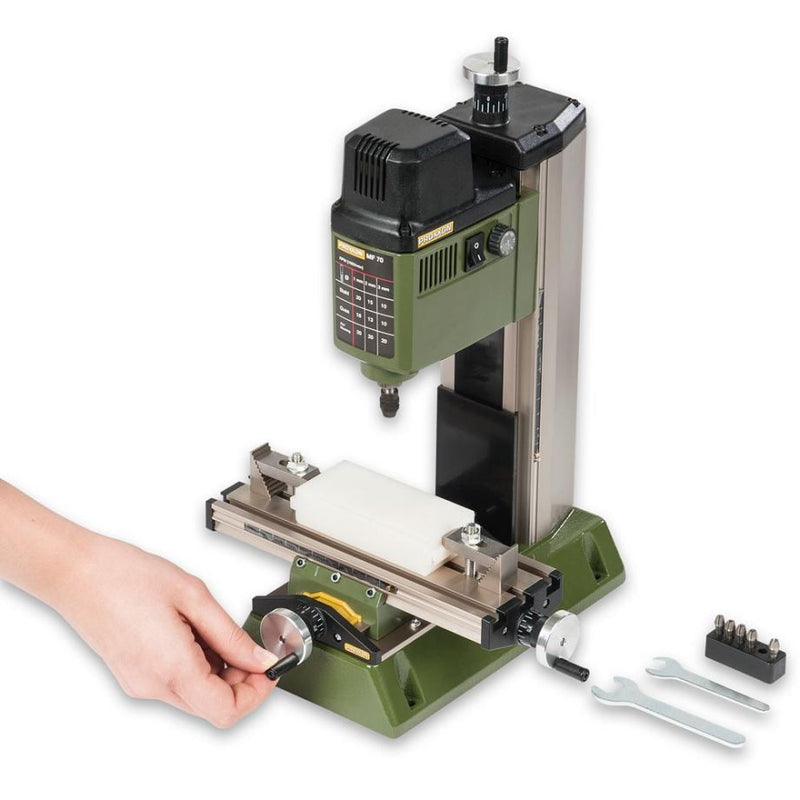

Proxxon MF70 MICRO Milling Machine 230v (27110)

This is a super little machine, well suited to modelling work and for the manufacture of small precision components in a variety of materials.

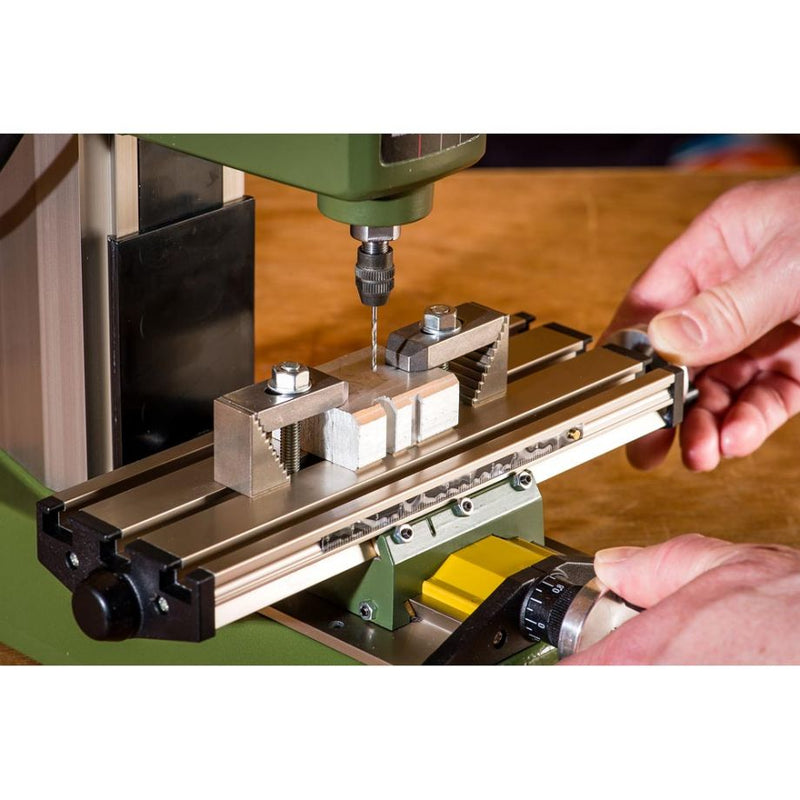

The extruded aluminium compound table has low backlash leadscrews and adjustable gib plates for smooth, accurate movement.

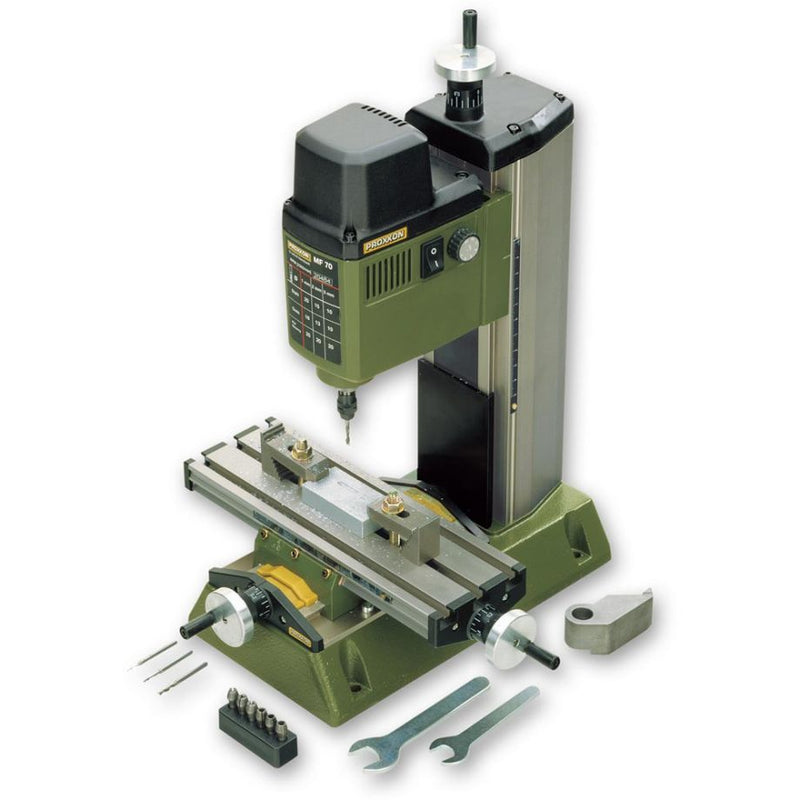

Supplied complete with a set of six collets of 1.0mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm diameter and 2 step clamps.

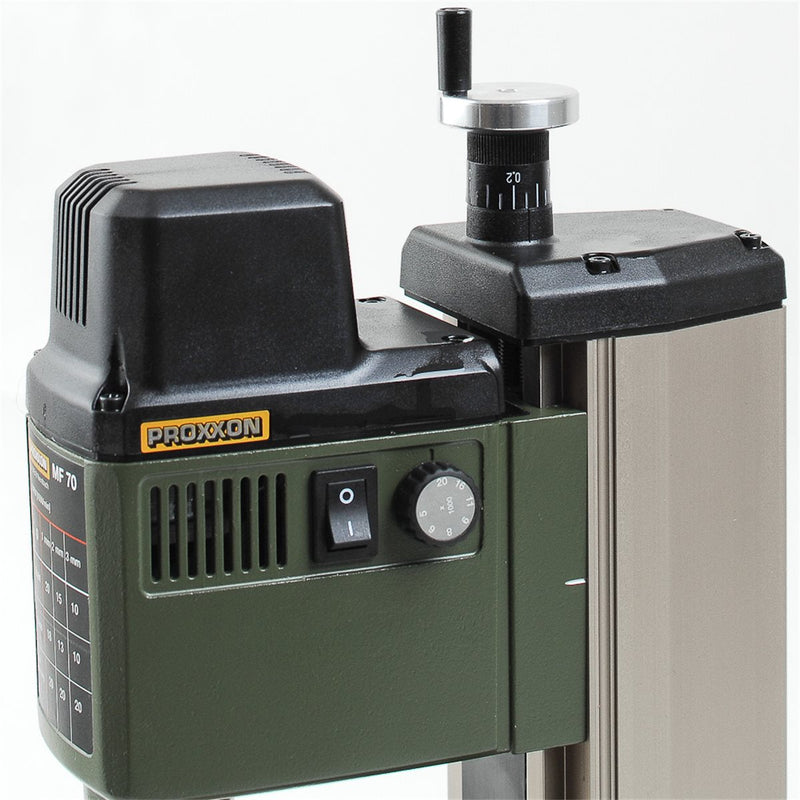

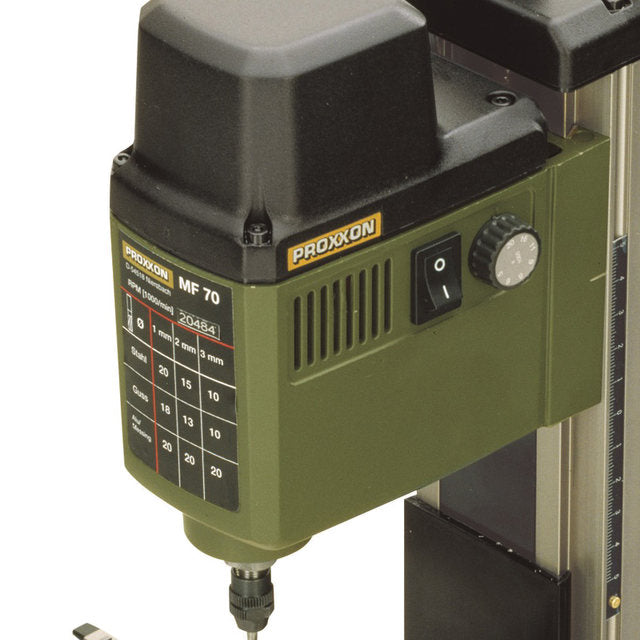

100W motor, variable spindle speed 5,000 to 20, 000 RPM.

Nose of spindle to table 135mm (max), Longitudinal table movement 134mm, Lateral table movement 46mm.

Table size: 200 x 70mm

Base size: 130 x 225mm

Overall L x W x H: 270 x 270 x 340mm

An optional set of solid carbide cutters is available, sizes 1.0mm, 2.0mm and 3.0mm

Additional step clamps may also be purchased, ref 24 256

A Drip & Chip collection base plate tray is also available, ref 24 116

Weight: 7kg

SKU: 27 110
