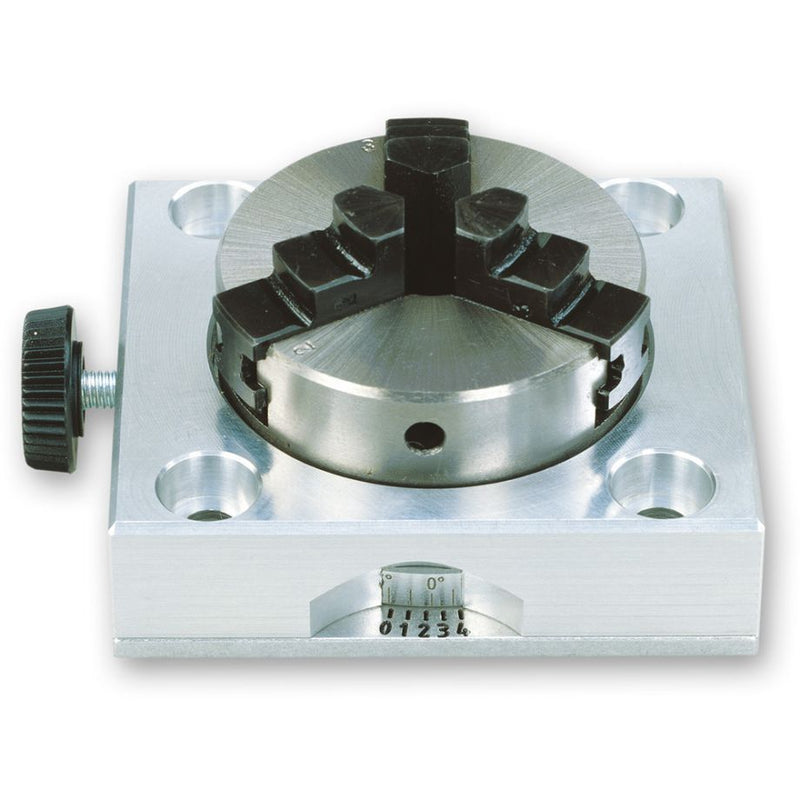

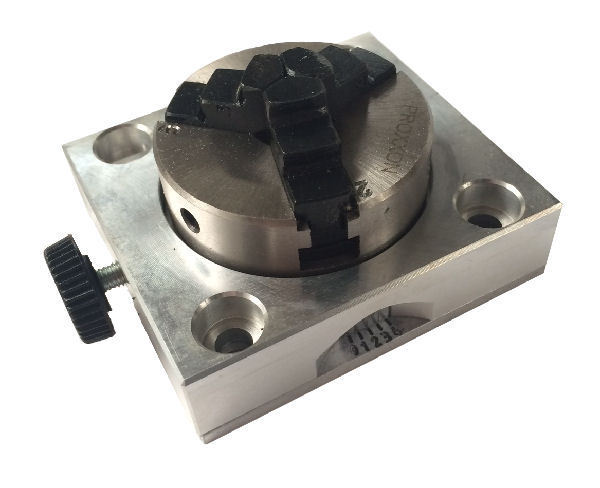

Proxxon Dividing Head (24264)

This Dividing Head can be used to drill off-set holes and to mill off-set slots, rectangles, hex shapes, etc.

A scale on the housing enables high accuracy divisions.

It includes a chuck with reversible jaws, which is able to clamp 1.5 - 32mm internally and 12 - 65mm externally.

The 11mm bore allows the passage of longer workpieces when it is used in the horizontal position.

It features fixing holes for horizontal & vertical assembly.

Suitable for use with the Proxxon MICRO Miller MF 70 and Compound Table KT 70.

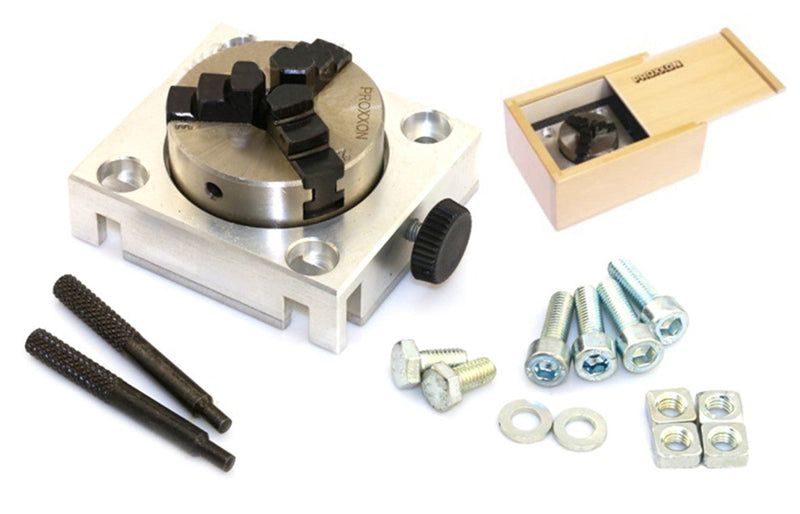

Size 72 x 64 x 38mm, supplied in wooden box with sliding lid.

SKU: 24 264
