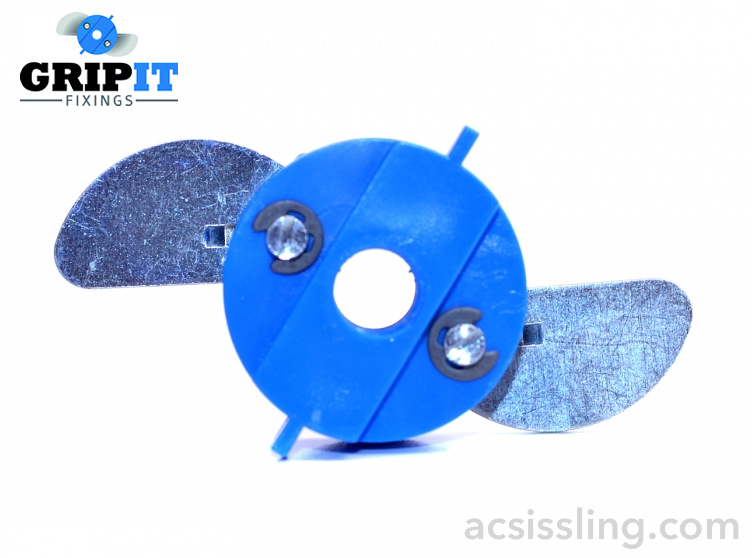

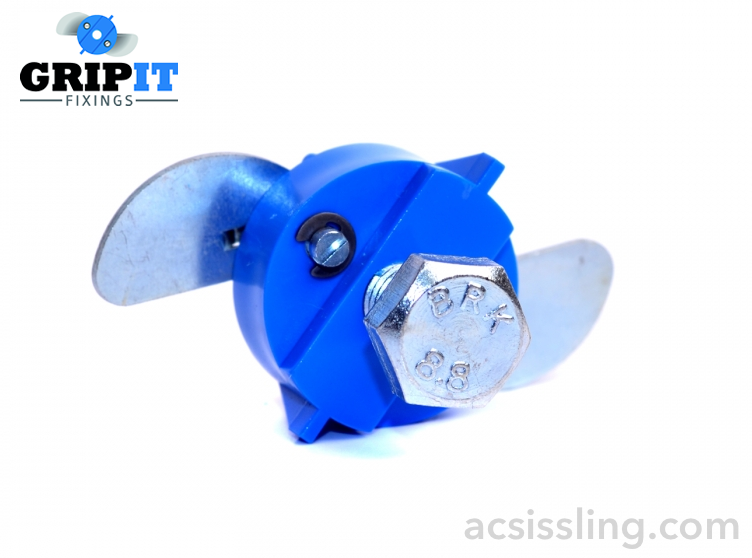

GRIPIT BLUE Fixing 113kg 25mm M8

Description

The Gripit BLUE is a universal fixing that has been designed to be able to be used on the "dot and dab" plasterboard as well as normal hollow cavity walls. Due to its slim griping wings it is able to open easily within the dab void to produce an effective secure fixing with excellent load bearing capability excelling any cavity wall fixing currently available.

Gripit diameter: 25mm

Gripit depth: 11.5mm

Screw diameter: M8

Screw length: 30mm

Min. spacing between Gripits (centres): 100mm

Safe Static Shear Load: 113g

Safe Static Tension Load: 20kg

Cantilever Load at 50mm: 40kg
Cantilever Load at 75mm: 31kg
Cantilever Load at 150mm: 25kg


** NB - TO BE DISCONTINUED WHEN STOCK =0 **
