SALICE C2C7P39 Inset Sprung Hinge Hinge 17mm Crank 26mm Cup 94d Opening For Glass Doors

Description

A 26mm cup glass cabinet door hinge compatible with all 200, 700 and DOMI hinge mounting plates for INSET applications. 17mm cranked arm.

Sprung closing action to hold the door closed.

To suit 4mm to 6mm thick glass.

Requires 26mm dia drillings in the glass, 5.5mm to 6.5mm in from the edge.

Allows a cupboard door to open 94 degrees.

Cover trim caps and mounting plates are NOT included and must be ordered seperately. See linked items below.

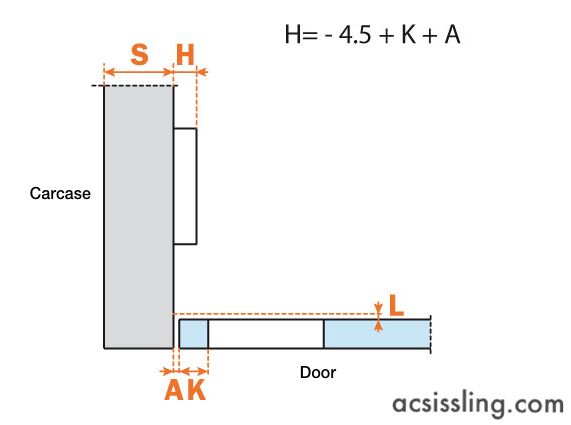

For 18mm carcase panels a 3mm Mount Plate is recommended. For other carcase thicknesses please use the 'H' value calculation formula shown
