Multi-Clip Secret-Fix Panel Clips

Description

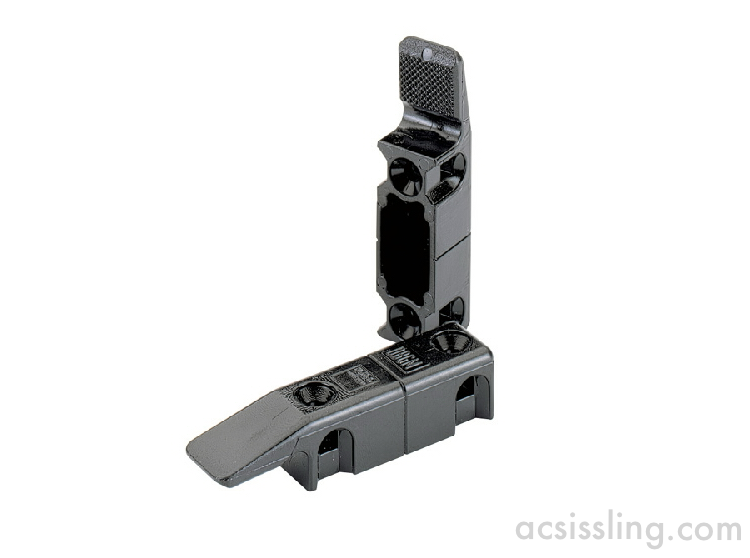

A single plastic component, simple and easy to use!

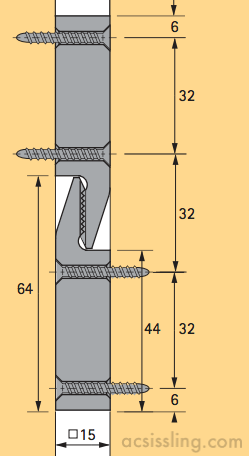

MultiClip is rectangular in shape and can be screwed in place from all sides. Fits easily into system 32 drilling.

Multi-Clip locates by means of a flexible tongue. These tongues are serrated and slightly sprung in order to provide a firm location.

Multi-Clip’s wide tolerance band provides significant adjustment after location.

MultiClip is versatile in use:

• For wall panelling, plinths, fascia panels and cladding of all types
• In all cases, the fitting can be screwed on parallel or at a right angle to the fascia or cladding component
• If the clip connectors have to be pushed on from the front, one of the fittings is screwed on at an angle of 90°

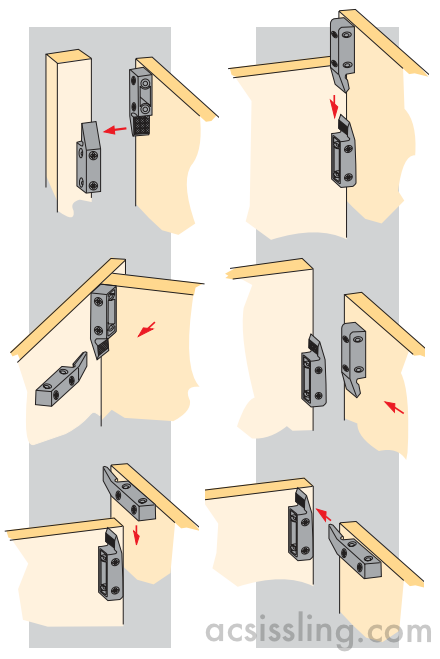

• The drawings opposite show just some of the applications possible with Multi-Clip. Simple, easy and economical
• Only 1 fitting for all types of application
• Strong location via spring-loaded flexible tongues with serrated surfaces
• Variable screw-on positions allow fixing from above, from the front, from the side etc.
• Compensation of installation tolerances
• Adjustability after installation
• Made from heat-resistant thermoplastic

Priced and sold per individual piece. Minimum requirement for one panel will be 4 pieces!
